LX55 Portable Sawmill

Built in the USA, economical twin rail portable sawmill replacing the popular LT10 sawmill! Includes a larger cut capacity up to 26” log diameter, more power options including 9.5HP or 14HP gas and 7HP electric, plus many upgraded features.

Feed Options
SPECIAL

$4,195.00


Was $4,495.00

Quantity

add to cart

Base Price $4,495.00
G9 $0.00

Share this Product

PRODUCT INFO
SPECS
ACCESSORIES

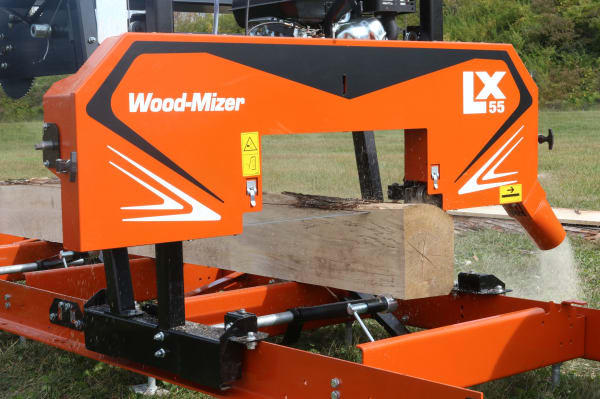

Entry-Level Twin Rail Sawmill Built in the USA

The LX55 twin rail portable sawmill features a large in-class cutting capacity for sawing 26” diameter logs into 22” wide boards up to 12’ 5” in length with optional 5’ bed extensions for sawing longer lengths. Built in the USA from premium quality steel, the LX55 sawmill adds extra strength and durability with the rigid LX Frame sawhead tower that holds the controls, engine, and sawmill head in a stable structure that travels on twin parallel ¼” thick laser cut steel bed rails. Packed with performance-enhancing features, the LX55 includes reliable Kohler gas engine and electric motor options, quick up/down sawhead, gravity-fed blade lubrication, and adjustable steel side supports and log clamps for a user-friendly sawing experience. Combine these features with the industry-leading reliability and durability of American-made Wood-Mizer portable sawmills for an entry-level sawmill that you can count on.




Request Info | LX55 Portable Sawmill






Features | LX55 Portable Sawmill

Large, In-Class Cutting Capacity

The LX55 features a large in-class cutting capacity for sawing 26” diameter logs into 22” wide boards up to 12’ 5” in length. Optional 5’ bed extensions for sawing longer lengths are available with no practical limit. The rectangular throat design offers the same 22" width of cut capacity from the blade all the way up to the sawhead. With the ability to saw as precise as 1/16” with the thin-kerf sawmill blade, the log clamp and built in bed side support allow for final cuts within 1” of the sawmill bed so you get the most usable lumber out of every log.

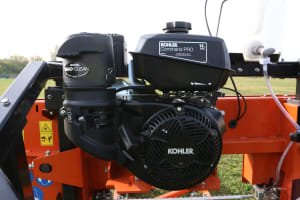

Reliable Gas or Electric Power

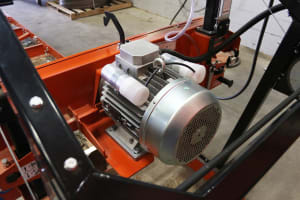

Reliable power options are available including 9.5HP or 14HP gas engines for sawing outdoors and 7HP electric motor for sawing indoors in a garage or workshop.The powerful and dependable Kohler Command Pro gas engines feature Quad-Clean™ all-season four-stage cyclonic air filter for effective engine protection even in tough and dirty sawing conditions. In addition, performance-driven features include a forged-steel crankshaft, electronic ignition and cast-iron cylinder liner for professional grade power and performance. Plus, a large-capacity fuel tank means more time sawing and less time refueling. Each Kohler engine includes a 3-year commercial limited warranty.


Blade Engage and Lubrication

Engage the sawmill blade with one handle that engages the mechanical clutch and throttles the engine at the same time. Keep the blade cool and free of pitch, sap, and sawdust while sawing with the gravity-fed blade lubrication that applies directly to the blade.


Quick Sawhead Up/Down

Quickly and accurately move the sawhead up and down to prepare for sawing with the crank handle. Easily turn the handle clockwise or counterclockwise with 68 locking locations to adjust the blade depth for the next cut in 1/68” increments. A log scale is also included for sawing 8/4”, 6/4”, 5/4”, 4/4”, and 3/4” lumber.


Two Steel Adjustable Log Clamps

Constructed of solid tube steel, the quick-set log clamps tightly fasten logs for sawing and are adjustable up/down and in/out as material is cut. The log clamps use an acme thread screw for better durability, rust-resistant powder-coat paint, and a clamp point block for an extra grip on a round log or squared cant. Each log clamp is able to move between other cross sections and additional log clamps are available.


Two Steel Adjustable Side Supports

Two solid tube steel side supports are adjustable up/down to stabilize logs during sawing and turning logs. Each side support is mounted on the same steel bar as an adjustable log clamp and includes rust-resistant powder-coat paint for durability. An additional built-in bed side support on each cross section eliminates the need for adjustable side supports while sawing a squared cant and allows for final cuts within 1” of the bed.


Easy Blade Changes

Sawmill blades run on belted 16" diameter cast iron band wheels. Blade changes are easy with the one-piece sawhead cover that is secured by two outside fasteners and two inside clips. The space-saving cover opens above the sawmill and locks into place for convenience. To change a blade, simply release the blade tension, replace the blade, and tension the blade without having to remove any extra parts.


Proudly Built in the USA

Since 1982, Wood-Mizer portable sawmills have been proudly Built in the USA at our factory in the heart of the Midwest. Premium quality steel is cut, formed, welded, painted with industrial-grade powder-coat paint, and quality checked before leaving our factory.


Easy Shipping and Assembly

The LX55 portable sawmill ships on a single pallet, comes with one Wood-Mizer sawmill blade, and requires minimal assembly time so you can start sawing within a few hours of receiving your sawmill.


$500 Down Financing with Low Monthly Payments

Start sawing lumber for only $500 Down with Wood-Mizer financing! $500 Down includes equipment and applicable freight, taxes, blades, parts, and accessories. APPLY TODAY!


30-Day Money Back Guarantee and 2-Year Warranty

With a 30-day money back guarantee and a 2-year sawmill warranty, the LX55 sawmill is backed by the same level of service, quality and safety features shared by the entire family of Wood-Mizer wood processing equipment. Whether you need technical advice, parts ordering, or troubleshooting, our Customer Service team is available to help. Call 800.525.8100 Monday – Saturday and talk to the experts.


*All prices and savings in U.S. dollars. Prices and specifications are subject to change without notice. NOW ONLY prices are after savings have been applied. Cannot be used in combination with any other offers or discounts. LX55 sawmill offer good on new orders paid in full or placed with deposit 8/1/2020 through 10/31/2020.


Power Selections 9.5HP Gas
14HP Gas
7HP Electric
Max. Log Diameter 26"
Max. Width of Cut 22"
Max. Depth of Cut 8"
Max. Length of Cut  12' 5"
Max. Length of Cut w/ Bed Extensions Unlimited
Bed Extensions 5' extensions
Sawhead Forward/Reverse Push Feed
Sawhead Up/Down Manual Crank
Side Supports 2 Adjustable
Log Clamps 2 Adjustable
Bed Leveling Feet 12 Adjustable (Optional)
Trailer Package N/A
Blade Lubrication 5 Gal. Water Tank with On/Off Valve
Blade Guide Arm Adjusted with Manual Lever (Optional)
Blade Engagement Manual Lever
Blade Length 132"
Blade Wheels 16" Diameter Belted Wheels
Paint Finish Powder Coat
Design Twin Rail
Warranty 30-Day Money Back
2-Year Sawmill
Country of Manufacture USA
