Lathe-Mizer Attachment

Versatile Sawmill Attachment to Convert Small Logs into Valuable Wood Products
Turn small diameter logs destined for firewood into a new source of income and creative projects with the Lathe-Mizer log lathe attachment for Wood-Mizer LT15 to LT70 model sawmills. Designed for hobbyists and professional woodworkers, the ability to turn logs into perfectly round, 3, 4, 6, or 8-sided pieces makes the Lathe-Mizer a perfect addition for anyone who wants to expand their product offering or get into more specialty woodworking projects.

Operation
Logs up to 13” in diameter and 8’ 4” long (12’ 4” long with the optional Lathe-Ex Bed Extension) are easily loaded onto the Lathe-Mizer bed. Once the lathe dog is set in the end of the log, the log is clamped to prepare for sawing. The sawmill blade is engaged to cut one side of the log with each pass. Simply reference the presets and rotate the log to create a 2, 3, 4, 6, or 8-sided piece. For perfectly round columns, a 1HP electric motor independently powered by a 110V outlet spins the lathe while the sawmill blade rounds out the 8-sided piece.

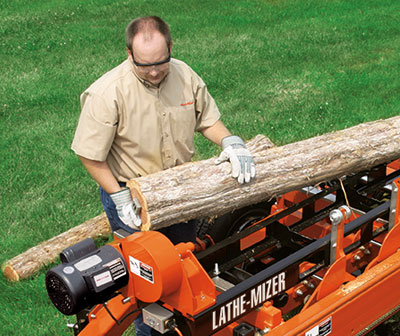

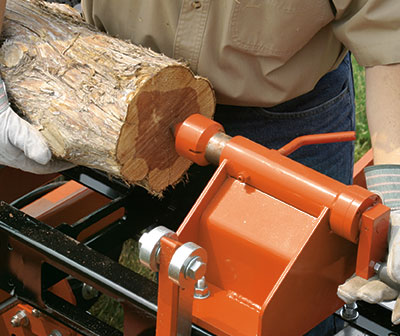

Simple to load

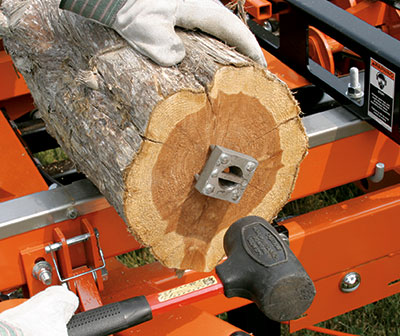

Setting lathe dog

Log is clamped

Sawn into 8 sides

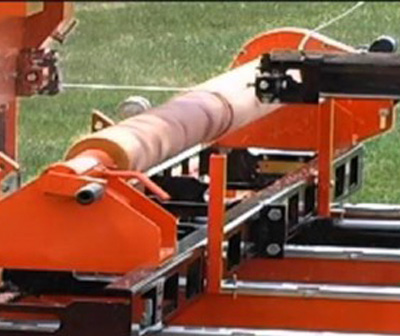

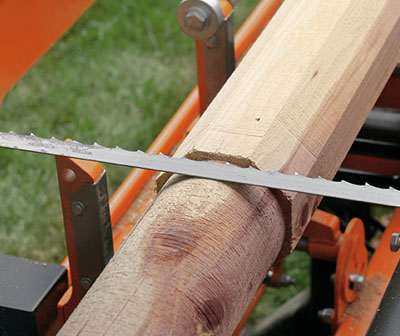

Lathe spins while sawmill rounds out log

Spinning is powered by a 1HP electric motor connected to a 110V outlet

Features

• Easily bolts to the frame on Wood-Mizer LT15 – LT70 model sawmills

• Turn small logs up to 13” in diameter and 8’ 4” long into round, triangle, square, hexagon, octagon, and other specialty shaped logs

• Simple to set-up and operate

• Create columns, posts, spindles, railings, furniture parts, landscape beds, and more!

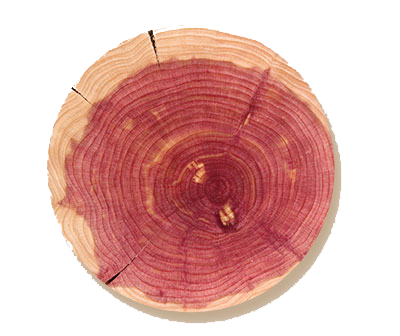

Circle

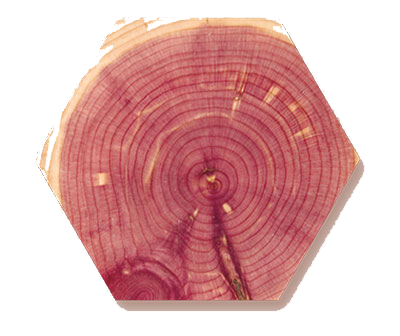

Hexagon

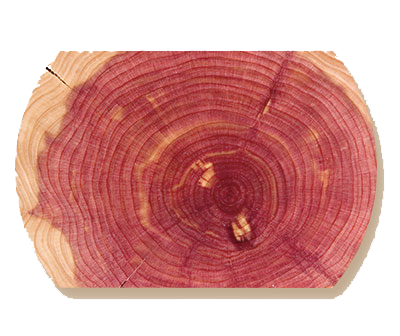

Landscape

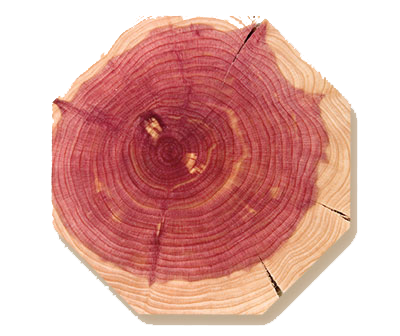

Octagon

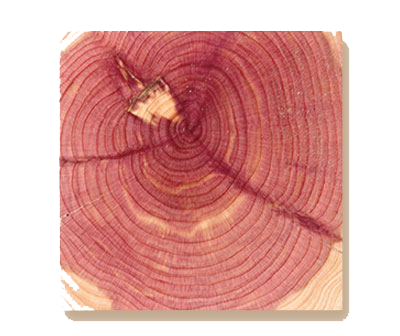

Square

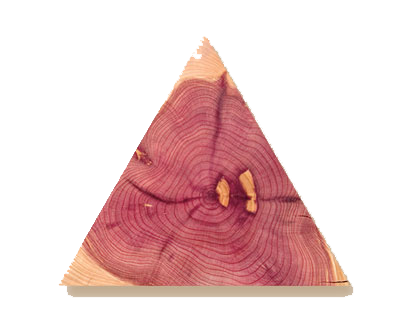

Triangle

Material Capacity

• Max Log Diameter - 13"
• Max Log Length - 8' 4"
• Max Log Length with Lathe-Ex - 12' 4"
• Min Finished Round Diameter - 3" with a max length of 6'
• Min Finished Round Diameter - 4" with a max length of 8' 4"
• Min Finished Round Diameter - 6" with a max length of 12' 4"
• Multi-sided Finished Diameter - 3" to 13"
