LX25 Portable Sawmill

Built in the USA, entry-level hobby sawmill with 7HP or 9.5HP gas engine, 26 inch log diameter, 22 inch width of cut, 12 foot 5 inch log length, auto-locking sawhead, and quick-set log handling for everything you need to start sawing your own lumber.

Power Options

$4,395.00


Base Price $4,395.00
G7 $0.00


Ships within 1 week! For free sawmill pickup, contact your local Wood-Mizer Representative.

Built in the USA   30-Day Guarantee   2-Year Warranty

Financing As Low As $173/Month†

PRODUCT INFO
SPECS
ACCESSORIES



Entry-Level Portable Sawmill Built in the USA

The LX25 portable sawmill features a large in-class cutting capacity for sawing 26” diameter logs into 22” wide boards up to 12’ 5” in length with optional 5’ bed extensions for sawing longer lengths. Packed with performance-enhancing features, the LX25 includes reliable Kohler gas engine options, accurate auto-locking sawhead, gravity-fed blade lubrication, and quick-set log handling for a user-friendly sawing experience. Built in the USA from premium quality steel, the LX25 sawmill adds extra strength and durability with ¼” thick laser cut steel bed rails, additional diagonal sawmill bed cross sections, solid tube steel sawhead frame, and industrial-grade powder coat paint. Combine these features with the industry-leading reliability and durability of American-made Wood-Mizer portable sawmills for an entry-level sawmill that you can count on.




Request Info | LX25 Portable Sawmill






Features | LX25 Portable Sawmill

Large, In-Class Cutting Capacity

The LX25 features a large in-class cutting capacity for sawing 26” diameter logs into 22” wide boards up to 12’ 5” in length. Optional 5’ bed extensions for sawing longer lengths are available with no practical limit. The rectangular throat design offers the same 22" width of cut capacity from the blade all the way up to the sawhead. With the ability to saw as precise as 1/16” with the thin-kerf sawmill blade, the log clamp and built in bed side support allow for final cuts within 1” of the sawmill bed so you get the most usable lumber out of every log.


Reliable Kohler Power

The powerful and dependable Kohler Command Pro 7HP or 9.5HP gas engines feature Quad-Clean™ all-season four-stage cyclonic air filter for effective engine protection even in tough and dirty sawing conditions. In addition, performance-driven features include a forged-steel crankshaft, electronic ignition and cast-iron cylinder liner for professional grade power and performance. Plus, a large-capacity fuel tank means more time sawing and less time refueling. Each Kohler engine includes a 3-year commercial limited warranty.

Adjustable Blade Guide Arm and Blade Engage

Reduce blade travel and support the blade when sawing narrow and wide material with the adjustable blade guide arm. Engage the sawmill blade with one handle that engages the mechanical clutch and throttles the engine at the same time. Keep the blade cool and free of pitch, sap, and sawdust while sawing with the gravity-fed blade lubrication that applies directly to the blade.

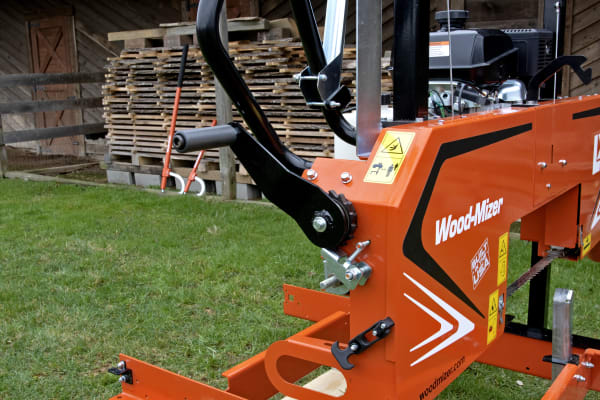

Auto-Locking Sawhead

Quickly and accurately move the sawhead up and down to prepare for sawing with the auto-locking sawhead crank handle. Easily turn the handle clockwise or counterclockwise with 16 locking locations to adjust the blade depth for the next cut in 1/16” increments. A log scale is also included for sawing 8/4”, 6/4”, 5/4”, 4/4”, and 3/4” lumber.

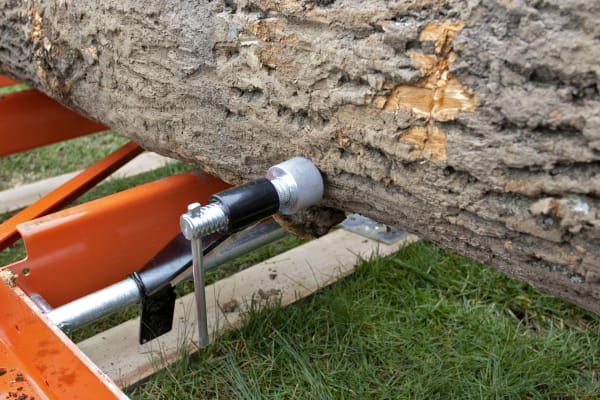

Quick-Set Log Clamp

Constructed of solid tube steel, the quick-set log clamp tightly fastens logs for sawing and is adjustable up/down and in/out as material is cut. The log clamp uses an acme thread screw for better durability, rust-resistant powder-coat paint, and a clamp point block for an extra grip on a round log or squared cant. Each log clamp is able to move between other cross sections and additional log clamps are available.

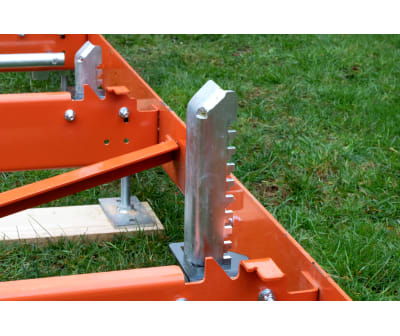

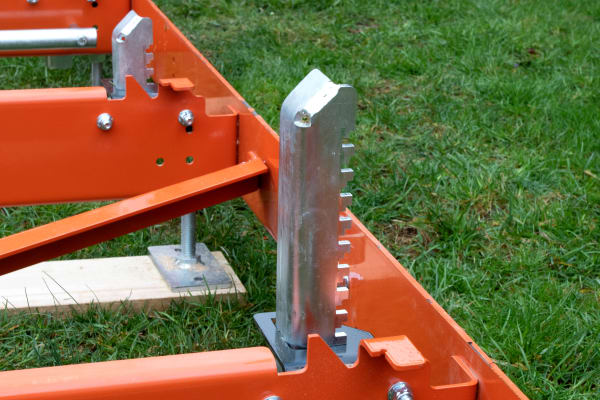

4 Quick-Set Side Supports

Four quick-set side supports (two short and two long) use a convenient and secure notching system for fast adjustment between cuts and when turning logs. An additional built-in bed side support on each cross section eliminates the need for quick-set side supports while sawing a squared cant and allows for final cuts within 1” of the bed.

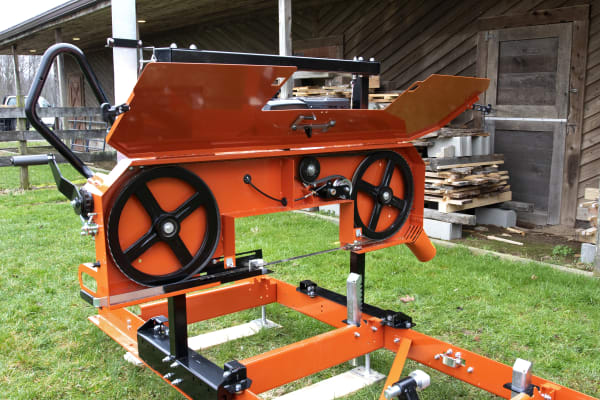

Easy Blade Changes

Sawmill blades run on belted 16" diameter cast iron band wheels. Blade changes are easy with the one-piece sawhead cover that is secured by two outside fasteners and two inside clips. The space-saving cover opens above the sawmill and locks into place for convenience. To change a blade, simply release the blade tension, replace the blade, and tension the blade without having to remove any extra parts.


Proudly Built in the USA

Since 1982, Wood-Mizer portable sawmills have been proudly Built in the USA at our factory in the heart of the Midwest. Premium quality steel is cut, formed, welded, painted with industrial-grade powder-coat paint, and quality checked before leaving our factory.

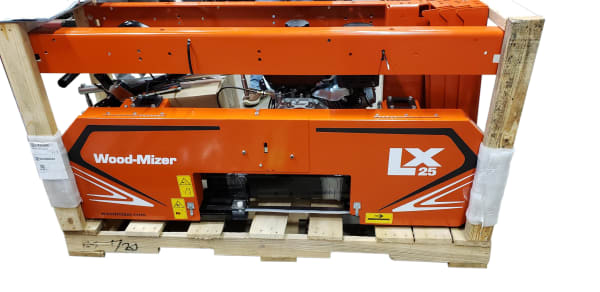

Free Shipping and Easy Assembly

Free shipping* to your door including residential and lift-gate service in the contiguous United States. The LX25 portable sawmill ships on a single pallet, comes with one Wood-Mizer sawmill blade, and requires minimal assembly time so you can start sawing within a few hours of receiving your sawmill.


30-Day Money Back Guarantee and 2-Year Warranty

With a 30-day money back guarantee and a 2-year sawmill warranty, the LX25 sawmill is backed by the same level of service, quality and safety features shared by the entire family of Wood-Mizer wood processing equipment. Whether you need technical advice, parts ordering, or troubleshooting, our Customer Service team is available to help. Call 800.525.8100 Monday – Saturday and talk to the experts.



Additional Videos


*All prices and savings in U.S. dollars. Prices and specifications are subject to change without notice. Shipping or delivery not included. Trailer-mounted mills require delivery or pick up from Wood-Mizer location. Some assembly may be required. Free shipping available on select products in contiguous U.S. only. Free shipping offer is based on location and cannot be redeemed for cash.

† Estimated payments are for the equipment only and based on no money down with 60 month terms, $400 down with 48 month terms, or $400 down with 24 month terms for qualified buyers through Wood-Mizer or CIT. Other financing options may also be available through Wood-Mizer or CIT for those not qualified for these special rates. Visit woodmizer.com/financing or call for assistance and terms.

Power Selections 7HP Kohler Gas
9.5HP Kohler Gas
Max. Log Diameter 26" (.66m)
Max. Width of Cut 22" (.56m)
Max. Depth of Cut 8" (.26m)
Max. Length of Cut  12' 5" (3.78m)
Max. Length of Cut w/ Bed Extensions Unlimited
Bed Extensions 5' (1.53m) extensions
Sawhead Forward/Reverse Push Feed
Sawhead Up/Down Auto Locking Hand Crank
Side Supports 4 Quick-Set (2 Short and 2 Long)
Log Clamps 1 Adjustable
Bed Leveling Feet 12 Adjustable (Optional)
Trailer Package N/A
Blade Lubrication 1 Gal. (3.8L) Water Tank with On/Off Valve
Blade Guide Arm Adjustable
Blade Engagement Mechanical Clutch
Blade Length 132" (3.35m)
Blade Wheels 16" (400mm) Diameter Cast Iron Belted
Machine Weight 579 lbs (263 kg)
Machine Length 15' (4.57m)
Machine Width 67" (1700mm)
Shipping Weight 665 lbs (302 kg)
Shipping Dimensions 65" x 22" x 38" (1650mm x 560mm x 965mm)
Delivery Methods Pallet
Paint Finish Powder Coat
Design Twin Rail
Warranty 30-Day Money Back
2-Year Sawmill
Country of Manufacture USA
